How to Diagnose Misfire Using OBD2 Scanner Like a Pro

A rough idle, a sudden loss of power, or that dreaded flashing check engine light — few things ruin a drive faster than an engine misfire. The good news? You don't need to be a master mechanic to pinpoint the problem. With a solid understanding of your OBD2 scanner and a systematic approach, you can diagnose most misfires in your own driveway, often saving hundreds of dollars in shop fees.

This guide walks you through the entire process — from understanding what a misfire actually is, to reading the right codes, analyzing live data, and knowing exactly which parts to inspect first. By the end, you'll be diagnosing misfires with the confidence of a professional. For more on this, see our guide on do you turn car on when using obd2.

What Is an Engine Misfire?

An engine misfire occurs when one or more cylinders fail to combust the air-fuel mixture properly. The result is a noticeable loss of power, rough running, increased emissions, and potentially serious damage to your catalytic converter if left unchecked.

Misfires generally fall into one of four categories:

• Ignition misfires — caused by faulty spark plugs, ignition coils, or wiring
• Fuel-related misfires — clogged injectors, weak fuel pump, or contaminated fuel
• Air/vacuum leaks — unmetered air entering the intake manifold
• Mechanical misfires — low compression from worn piston rings, burnt valves, or a stretched timing chain

Understanding which category you're dealing with is the first step toward a fast fix. Your OBD2 scanner is the tool that points you in the right direction. For more on this, see our guide on what is vpwr on obd2 scanner.

How OBD2 Technology Works

OBD2 (On-Board Diagnostics, version 2) has been mandatory on all vehicles sold in the United States since 1996. The system continuously monitors engine performance, emissions controls, and dozens of other parameters. When something falls outside expected ranges, the ECU (Engine Control Unit) stores a Diagnostic Trouble Code (DTC) and illuminates the check engine light.

The OBD2 port — a 16-pin connector usually located under the dashboard near the steering column — gives you direct access to this data. Plugging in a scanner allows you to retrieve codes, view live sensor readings, and access freeze frame data that captures engine conditions at the exact moment a fault occurred. For more on this, see our guide on can an obd2 scanner detect transmission problems 2.

For a deeper look at what your scanner can reveal beyond basic codes, check out our guide on uncovering hidden vehicle issues with advanced diagnostics.

Types of OBD2 Scanners

Not all scanners are created equal. Here's a breakdown of what's available:

For misfire diagnosis, a basic code reader will tell you which cylinder is misfiring, but a Bluetooth or professional scanner gives you the live data and freeze frame information needed to understand why. If you're serious about DIY diagnostics, invest in a scanner with live data capability — it pays for itself the first time you avoid replacing a part that wasn't actually faulty. For more on this, see our guide on how to clear codes with obd2 scanner.

Step-by-Step: How to Diagnose a Misfire with an OBD2 Scanner

Follow these steps in order. Skipping ahead is where most DIYers go wrong.

Step 1: Prepare Safely

Park on a level surface, engage the parking brake, and ensure the transmission is in Park (or Neutral for manual). If you need to run the engine during diagnosis, keep loose clothing, hair, and tools away from moving belts and fans. Work in a well-ventilated area.

Step 2: Locate the OBD2 Port

The port is almost always under the dashboard on the driver's side, within reach of the steering column. If you can't find it, check your owner's manual — some vehicles hide it behind a small panel or ashtray.

Step 3: Connect the Scanner

With the ignition off, plug the scanner into the port. Turn the ignition to the "On" position (without starting the engine) to power up the scanner and establish communication with the ECU.

Step 4: Read the Trouble Codes

Navigate to the "Read Codes" function. Misfire codes follow a standard format:

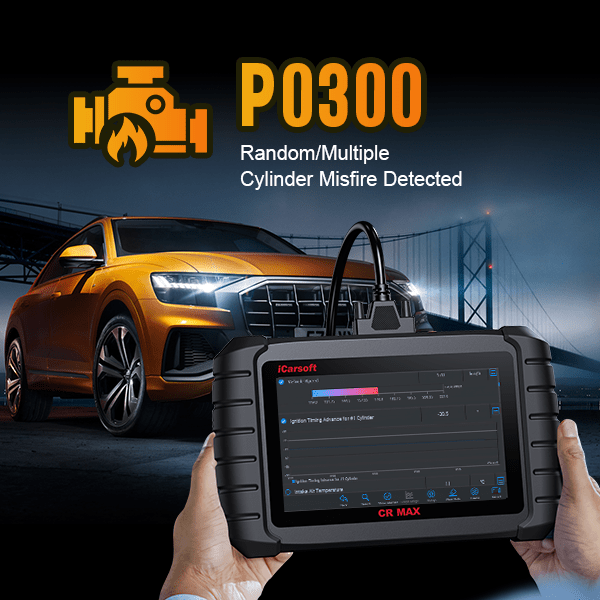

• P0300 — Random or multiple cylinder misfire
• P0301 — Cylinder 1 misfire
• P0302 — Cylinder 2 misfire
• P0303 — Cylinder 3 misfire
• P0304 — Cylinder 4 misfire
• P0305 through P0308 — Cylinders 5 through 8

Write down every code you see, not just the misfire codes. A P0171 (system too lean) alongside a P0301 tells a very different story than a P0301 alone. Related codes often point to a shared root cause.

Step 5: Capture Freeze Frame Data

Freeze frame data is a snapshot of engine conditions when the fault was first detected. This is one of the most underutilized diagnostic tools. Look for:

• Engine RPM — Was the misfire at idle, cruise, or wide-open throttle?
• Coolant temperature — Did it happen cold, warm, or fully warmed up?
• Engine load — Was the engine under load or coasting?
• Fuel trim values — Are they unusually high or low?

A misfire that only occurs at cold start points to a different cause than one that appears under heavy acceleration.

Step 6: Analyze Live Data

This is where the real diagnosis happens. Start the engine and monitor these parameters:

If you see a misfire code for cylinder 3 and the fuel trim is +15%, the engine is running lean — suspect a vacuum leak or fuel delivery issue rather than an ignition problem.

Step 7: Narrow Down the Cause

Combine the codes, freeze frame data, and live readings to form a hypothesis. For example:

• P0301 with rough idle only → Check spark plug and ignition coil on cylinder 1
• P0300 with high fuel trim → Look for vacuum leaks or fuel pressure issues
• P0304 under load only → Suspect a weak ignition coil or clogged injector

Step 8: Inspect Physical Components

Once you've narrowed it down, get hands-on:

• Spark plugs — Remove and inspect for wear, carbon fouling, oil fouling, or cracks. Compare the plug from the misfiring cylinder to one from a healthy cylinder.
• Ignition coils — Swap the coil from the misfiring cylinder with a known-good cylinder. If the misfire code moves, the coil is faulty.
• Fuel injectors — Listen for a consistent clicking sound with a stethoscope. Test resistance with a multimeter and compare to other injectors.
• Vacuum leaks — With the engine idling, spray carburetor cleaner around the intake manifold gaskets and vacuum hoses. If RPM changes, you've found a leak.
• Compression — If all else checks out, perform a compression test. Low compression means internal engine work.

Step 9: Clear Codes and Retest

After making repairs, clear the codes with your scanner. Start the engine and let it idle, then take the car for a test drive that replicates the conditions from the freeze frame data. If the check engine light stays off and no codes return, the repair is complete.

Understanding Misfire Codes in Detail

Misfire codes are standardized across all manufacturers, but there's more to them than just the cylinder number:

• P0300 indicates the ECU detected misfires across multiple cylinders or couldn't isolate a single cylinder. This often points to a common cause — fuel pressure, mass airflow sensor, or a major vacuum leak.
• Single-cylinder codes (P0301–P0308) narrow the problem to that specific cylinder's spark, fuel, or mechanical condition.
• Manufacturer-specific codes may provide additional detail. Some vehicles have enhanced codes that distinguish between misfires with fuel cut-off and those without.

Common Misfire Diagnosis Mistakes

Even experienced DIYers fall into these traps:

Ignoring freeze frame data. This snapshot tells you exactly when and how the misfire occurred. Skipping it means guessing.

Clearing codes before diagnosing. Once you clear codes, you lose the freeze frame data. Always record everything before clearing.

Replacing parts without testing. Swapping spark plugs and coils "just in case" is expensive and often ineffective. Test components before buying replacements.

Forgetting about vacuum leaks. A small intake leak can cause misfires that mimic ignition problems. Always check for leaks before condemning parts.

Not comparing cylinder readings. If you have live data, compare misfire counts across cylinders. A pattern often reveals the root cause.

Advanced OBD2 Features for Misfire Diagnosis

If your scanner supports these features, use them:

• Mode 6 data — Displays on-board test results, including misfire counts per cylinder. This is invaluable for intermittent misfires that don't trigger a code yet.
• Graphing live data — Visualizing RPM, fuel trim, and O2 sensor activity makes patterns easier to spot.
• Bidirectional controls — Professional scanners can command fuel injectors or ignition coils to test them individually.

Real-World Example: Diagnosing a P0302

Let's put it all together. Your scanner shows P0302 — cylinder 2 misfire. Freeze frame data shows the misfire occurred at 2,500 RPM under moderate load with the engine fully warmed up.

1. Swap the ignition coil from cylinder 2 to cylinder 3. Clear the codes and test drive.
2. If the code changes to P0303, the coil is faulty — replace it.
3. If the code stays P0302, swap the spark plug from cylinder 2 to cylinder 4. Test again.
4. If the code moves, replace the plug. If not, test the fuel injector on cylinder 2 with a multimeter and compare resistance to other injectors.
5. If the injector checks out, perform a compression test on cylinder 2.

This systematic approach eliminates guesswork and prevents unnecessary parts replacement.

When to Call a Professional

Some misfires are beyond the scope of DIY repair. Seek professional help if:

• The misfire persists after replacing spark plugs, coils, and injectors
• Compression is low on one or more cylinders
• You hear unusual knocking or tapping sounds from the engine
• Codes return immediately after clearing
• The misfire is accompanied by overheating or loss of coolant

Internal engine damage — burnt valves, worn piston rings, or a stretched timing chain — requires specialized tools and expertise.

Preventing Misfires Before They Happen

Routine maintenance is your best defense:

• Replace spark plugs at the manufacturer's recommended interval (typically 30,000–100,000 miles depending on plug type)
• Inspect ignition coils for cracks, corrosion, or carbon tracking during tune-ups
• Use quality fuel from reputable stations to avoid injector clogging
• Address vacuum leaks promptly — a small leak today becomes a big problem tomorrow
• Keep your air filter clean to maintain proper air-fuel ratios

Misfires and Emissions

Misfires directly impact emissions. Unburned fuel exits the exhaust, potentially damaging the catalytic converter and causing your vehicle to fail an emissions test. The OBD2 system monitors misfire rates specifically to protect emissions equipment. Fixing misfires promptly keeps your car running clean and passing inspections.

Conclusion

Diagnosing a misfire with an OBD2 scanner is a skill anyone can learn. The process comes down to reading the codes, capturing the freeze frame data, analyzing live sensor readings, and testing components systematically — not throwing parts at the problem.

Start with the basics: record all codes, check freeze frame data, and inspect the spark plugs and ignition components on the affected cylinder. Work through the steps in order, and you'll resolve the vast majority of misfires yourself.

Your next step? Grab your scanner, connect it to your vehicle, and familiarize yourself with the live data screen before a problem even occurs. Knowing what "normal" looks like makes spotting "abnormal" much easier when the check engine light comes on.
